High-resolution & Real-time Measurement, Reduce Time for Measurement




Shimadzu SPG-V500 laser spectrum analyzer achieves both high resolution and real-time measurement, which was never achieved in conventional products. In addition, multimode fiber input reduces the time and effort for optical axis adjustment, further accelerating the measurement of laser spectrum.

SPG-V500_DLボタン




Why Choose SPG-V500?




1. Capture Spectral Behavior with High-resolution in a blink of an eye

Spectrum measurement can be as short as 6 μs, and instantaneous wavelength behavior such as mode hopping can be captured. Spectrum measurement of short-pulse lasers is also possible. The wavelength resolution is approximately 0.02 nm (Typ.) , which enables accurate and finer spectrum measurement.

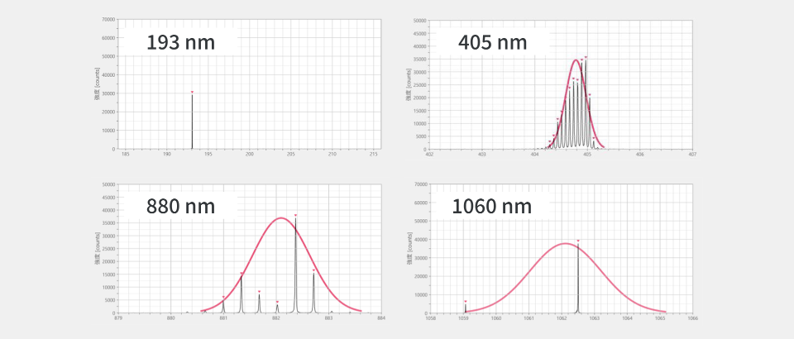

2. One-stop Solution for Wide Wavelength Range

SPG-V500 can measure a wide wavelength range from DUV at 185 nm to NIR at 1095 nm. Especially, DUV laser(e.g. Excimer laser, Wavelength conversion laser) can be measured.


*SPG-V500 for InGaAs Type (950nm - 1700nm) will also be released soon.

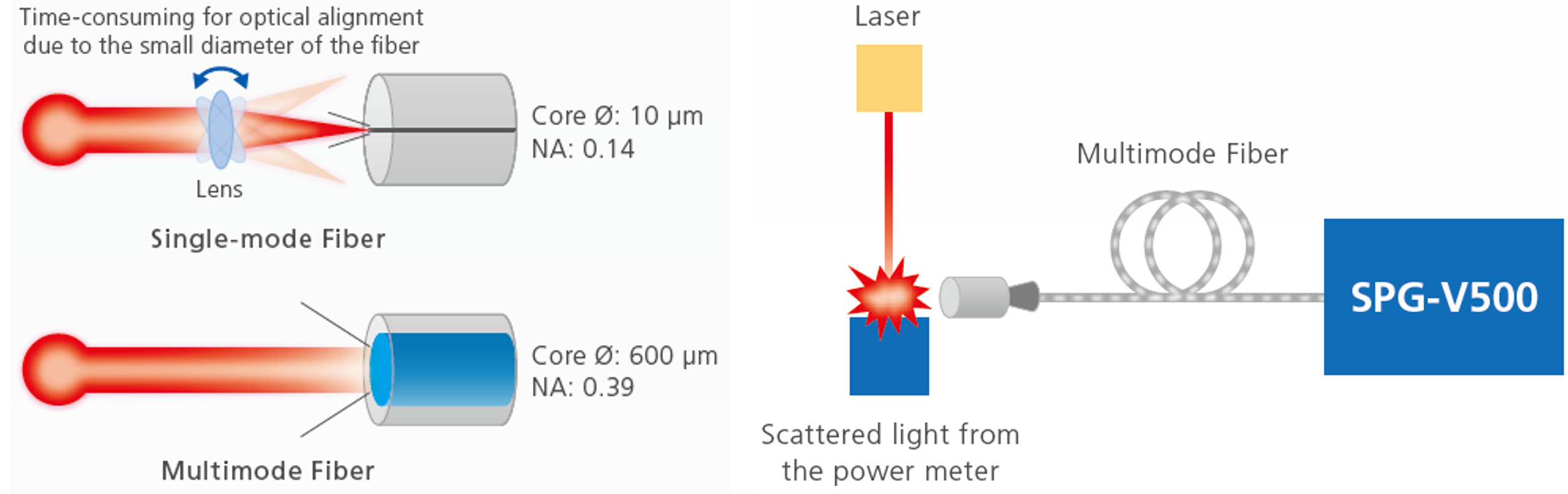

3. Reduces Time and Effort for Optical Axis Adjustment

SPG-V500 realizes easy light input with multimode fiber, reduces the time for optical axis adjustment and simplifies laser measurements. Also, measurement can be performed by simply orientating the optical fiber to the scattered light from the power meter, allowing simultaneous measurement of wavelength and output intensity.

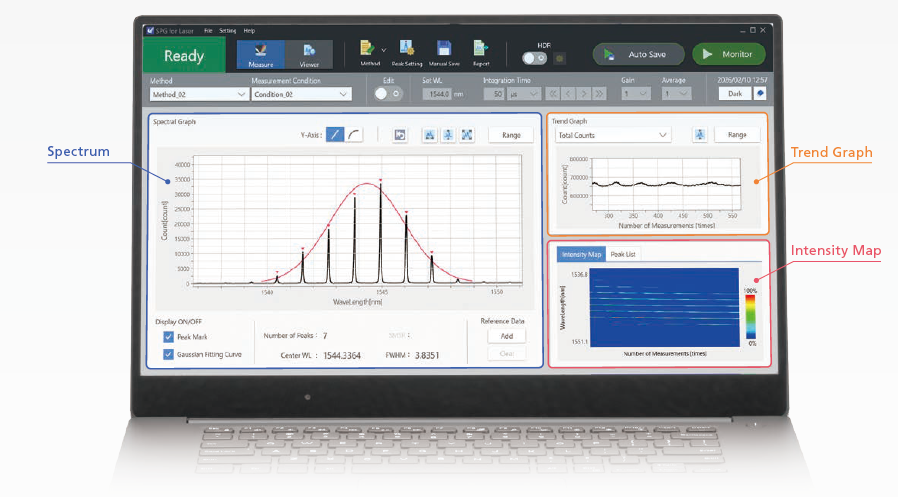

4. User-Friendly Software Specialized for Laser Measurement

SPG-V500 has a simple design with only a power button. The user simply selects the measurement conditions on the software for SPG-V500. The user's operation is summarized in 3 steps: "Input laser" → "Select measurement conditions" → "Start measurement“, therefore the equipment is easy for anyone to use. The spectrum graph changing in real time can be tracked on the Software. The software also includes intensity map and trend graph, the fluctuation of the laser intensity, the change of the peak number, and the transition of the center wavelength of the fitting curve, which promotes understanding characteristics of lasers visually.




SPG-V500_DLボタン



Application Examples



1. Evaluation of Spectral Behavior

SPG-V500 captures instantaneous wavelength behavior and can be used for setting laser conditions and evaluation of wavelength stability. The continuous storage function allows recording of wavelength changes over time.

  • Application Example
    Simultaneous Measurement of Wavelength Behavior and Output Noise of Solid-State Laser

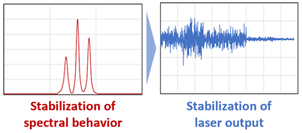

    SPG-V500 helps to suppress mode hop (longitudinal mode instability). The resonator can be adjusted while simultaneously measuring the spectrum and output using a power meter to reduce output noise.

  • Other Application Examples
    ✓ Adjustment of single frequency laser
    ✓ Noise suppression of laser for optical analysis

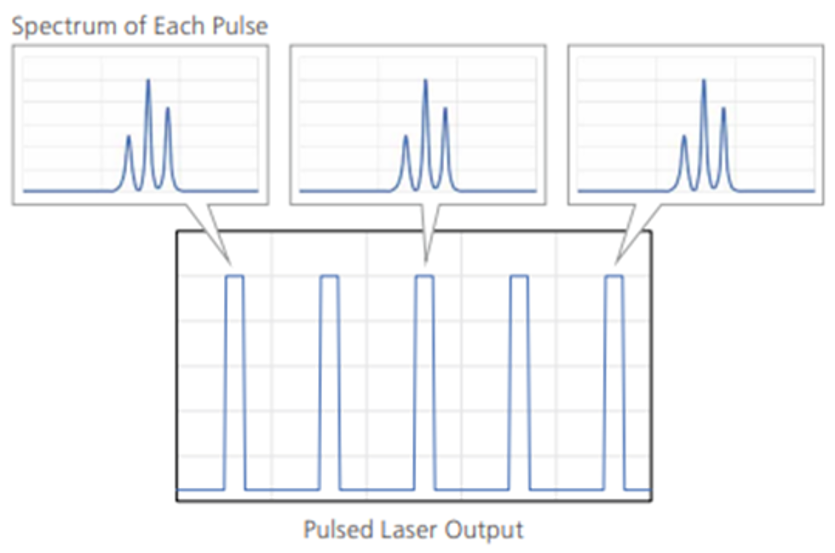

2. Spectral Measurement of Pulsed Laser

SPG-V500 is also compatible with pulsed laser measurement since a certain range of spectrum is acquired simultaneously using an array sensor. By adjusting the measurement time (integration time), spectrum acquisition of only one pulse is possible. *Whether a laser can be measured depends on the laser's repetition rate, output, and other conditions.

  • Application Example
    Spectral evaluation of Q-Switch Laser


3. Reliability Evaluation

SPG-V500 has an interval storage function and spectral information can be periodically acquired and stored. It is suitable for long-term reliability evaluation and temperature characterization of lasers.

  • Application Example

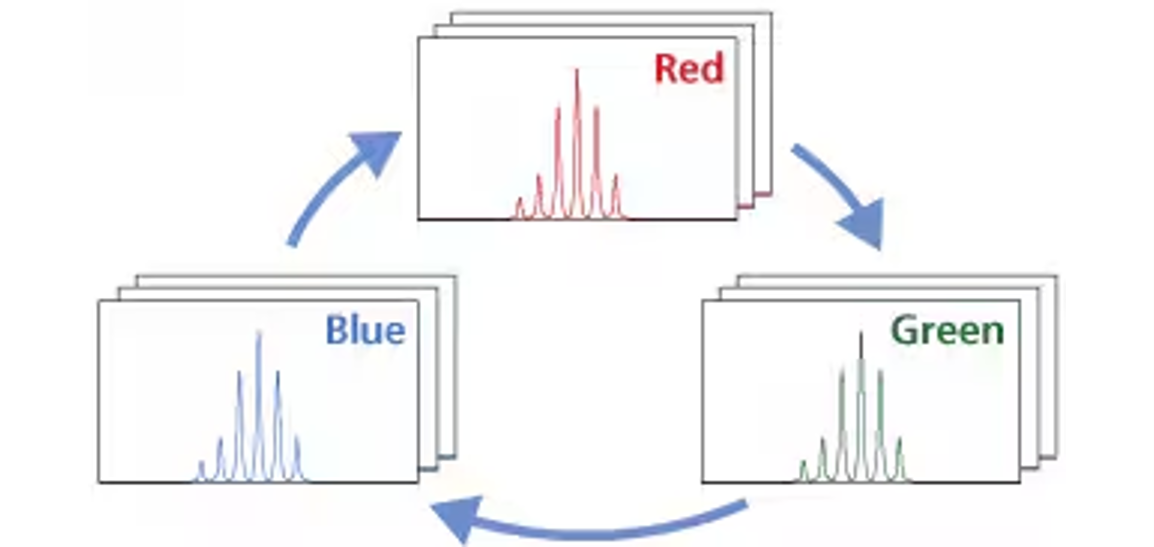

    Continuous lighting test of RGB laser
    For example. it is possible to evaluate to acquire the detailed spectral information in the three wavelength bands of red, green, and blue 1000 times at 10-second intervals.

  • Other Application Examples
    ✓ Evaluation of environmental temperature effects of lasers


4. Automation of Measurement, Equipment Coordination

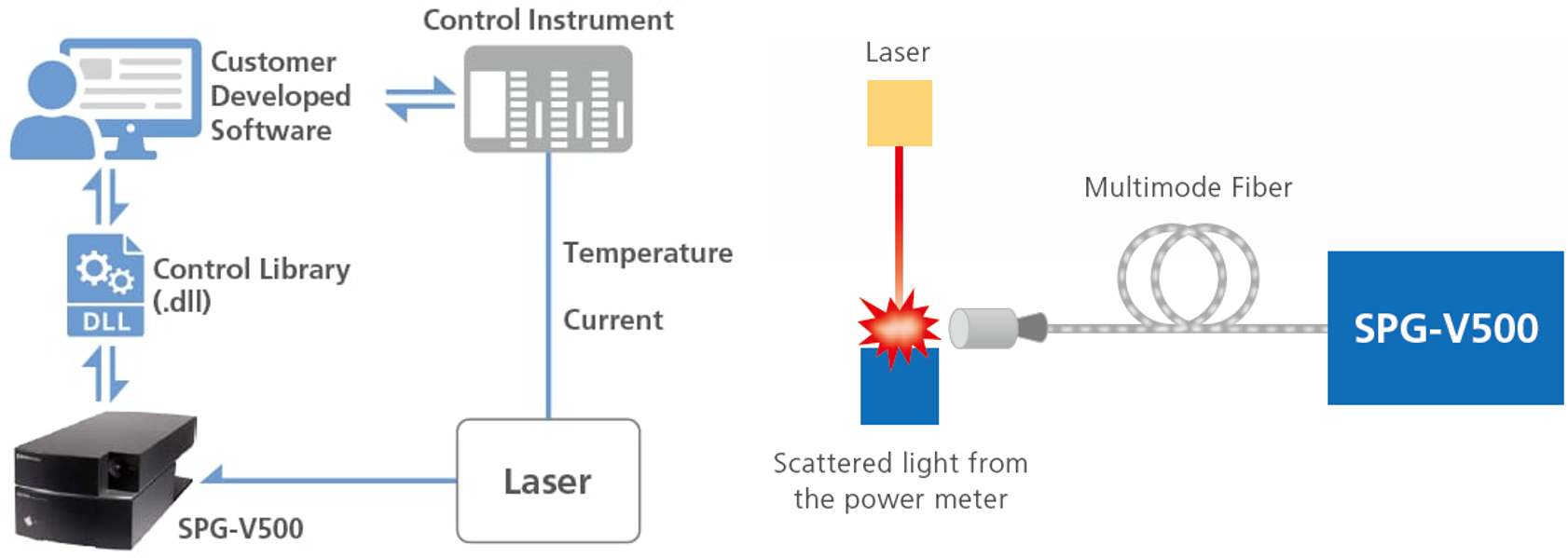

SPG-V500 provides control libraries for languages such as C# and Python and can be controlled in conjunction with other devices. Easy light input with multimode fiber also reduces optical axis adjustment and promotes automation of inspections for laser.

  • Application Example
    Automatic evaluation of temperature and current characteristics of laser wavelength
  • Other Application Examples
    ✓ Integration of SPG-V500 into LD Chip Tester
<!doctype html>

Example

Simultaneous Measurement of Wavelength Behavior and Output Noise of Solid-State Laser

SPG-V500 helps to suppress mode hop (longitudinal mode instability). The resonator can be adjusted while simultaneously measuring the spectrum and output using a power meter to reduce output noise.

用途事例画像

Other examples
  • Adjustment of single frequency laser
  • Noise suppression of laser for optical analysis

　　　

B As a trusted partner in the pharmaceutical industry,

Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.

Free Download

Check out the additional resources for your XXX analysis
White Paper
  • As a trusted partner in the pharmaceutical industry, Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.
Application News
  • As a trusted partner in the pharmaceutical industry, Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.
Webinar
  • As a trusted partner in the pharmaceutical industry, Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.

B As a trusted partner in the pharmaceutical industry,

Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.

Free Download

B2 As a trusted partner in the pharmaceutical industry,

Shimadzu provides a variety of instruments and suitable workflows for drug impurity analysis to help ensure compliance to these guidelines.

Free Download
SPG-V500_DLボタン





User’s Voice




Users of SPG-V500 have praised its real-time and high-resolution measurement and its high workability for laser light input into the equipment.


  • Thanks to the easy light input with multimode fiber, the sensitivity is overwhelmingly higher than that of conventional spectrum analyzer. It is also amazing that a high wavelength resolution of 0.02 nm(Typ.) could be obtained so easily.
  • I feel SPG-V500 has great value because it eliminates the effort for fine optical adjustments that used to be required for wavelength measurement. The equipment makes development and inspection more efficient.
  • I was surprised that the optical adjustment process of "moving, stopping, and checking," which I had taken for granted in laser measurement, could be performed smoothly without stopping.
  • Conventionally, optical adjustment using a single-mode fiber was time-consuming in order to obtain wavelength resolution that could separate longitudinal modes. With the SPG-V500, the optical adjustment is eliminated, which greatly reduces the evaluation time.
  • In addition to real-time measurement of the wavelength which I expected, intensity and peak number data required for optical adjustment of the laser are visualized on the PC screen, so I think it is very easy to use the equipment. I think it can be used effectively for speeding up development and inspection processes of our lasers.
  • Conventional optical spectrum analyzers tend to require a lot of button operations when setting conditions. But with the SPG-V500, we were surprised to be able to obtain spectrum information without detailed settings.

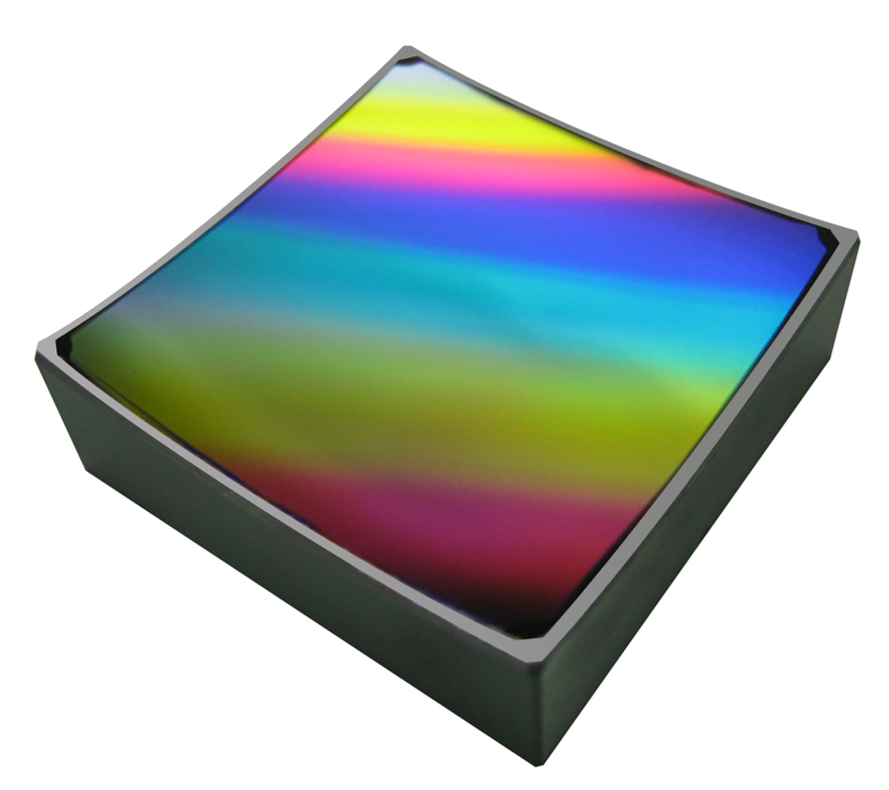

> Concave and Toroidal Diffraction Gratings
  • Features
    - Includes aberration-corrected models with excellent imaging performance, as well as toroidal designs that effectively correct astigmatism.
    - Can be selected according to application, including use in polychromators, monochromators, and compact instruments.
  • Applications
    - Optical analysis, medical care and diagnosis (biochemical test), semiconductors, food, and more
  • Supported Specification Range

Groove density

(grooves /mm)

Blaze wavelength※

(nm)

External Dimensions (W× D × T)

(mm)

100 ～ 2400

200 ～ 2000

15×15×5 ～ 70×70×11.3
※The blaze wavelength is the wavelength at which the designed mounting provides an approximate maximum diffraction efficiency.
　It does not guarantee the actual wavelength of maximum  diffraction efficiency.

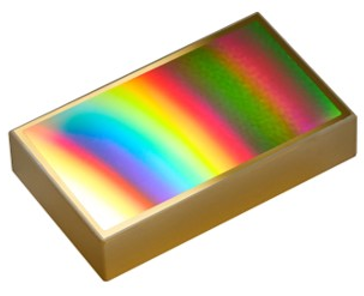

> Plane Diffraction Gratings

  • Features
    - Blazed holographic diffraction gratings that provide not only low stray light but also high diffraction efficiency in specified wavelength regions.
    - The lineup includes low stray light gratings with guaranteed stray light specifications, as well as models for optical communications and laser applications.
  • Applications
    - Optical analysis, semiconductors, optical communications, lasers, and more
  • Supported Specification Range

Groove density

(grooves /mm)

Blaze wavelength※

(nm)

External Dimensions (W× D × T)

(mm)

100 ～ 5000

200 ～ 2400

6×6×3 ～ 80×80×11.3
※The blaze wavelength is the nominal value in the Littrow configuration and is not guaranteed.
> Laminar Diffraction Gratings
  • Features
    - Extensive selection of standard replica-type gratings suitable for a wide range of experiments.
    - Master gratings can also be provided.
  • Applications
    - High-harmonic-generation research, synchrotron facilities, VUV/XUV/soft-X-ray spectrometers, and more
  • Supported Specification Range

Groove density

(grooves /mm)

Blaze wavelength※

(nm)

External Dimensions (W× D × T)

(mm)

120 ~ 6000

0.6 ~ 200

50×30×10 ～ 70×40×12
※The blaze wavelength is the wavelength at which the designed mounting provides an approximate maximum diffraction efficiency.
       It does not guarantee the actual wavelength of maximum  diffraction efficiency.

Comment by Tera-Photonics Research Team at the RIKEN, Japan

~Visualization of Terahertz-Wave Signals~
“Previously, signals had to be checked while delicately adjusting the position at each frequency, which required massive amounts of time for measurements, but the SPG-V500 completely eliminated the need for such steps, making detection easy. Furthermore, using a multi-mode fiber normally reduces resolution, but the SPG-V500 was able to couple many signals while maintaining high resolution. “












Examples of Diffraction Grating Applications


Diffraction gratings are widely used as dispersive elements in instruments that use optical principles. They are used in optical analysis instruments such as spectrophotometers, in biochemical analyzers in the medical field, and in food-quality control. Shimadzu diffraction gratings are manufactured by precisely replicating master gratings produced using a holographic exposure process that creates extremely low stray light gratings. In addition, blaze processing using ion-beam etching provides diffraction efficiency comparable to that of mechanically ruled gratings. By combining low stray light and high efficiency while minimizing variation in optical performance, these gratings enhance the performance of instruments that require highly accurate measurements.

Process monitoring in semiconductor manufacturing is essential for ensuring process quality and improving efficiency. In etching and deposition processes, where real-time monitoring is required, diffraction gratings are used in systems that analyze changes in light to track progress of the processes. Shimadzu diffraction gratings offer a broad lineup featuring low stray light, high efficiency, and stable quality, enabling selection of the optimal grating for each application. Customization of specifications is also available.

Optical-communication components must maintain highly reliable communication infrastructure over long periods and under diverse operating environments.

Shimadzu diffraction gratings for optical communications pass high-temperature tests (85 °C, 2000 hours), high-temperature/high-humidity tests (85 °C, 85 % RH, 2000 hours), low-temperature tests (-40 °C, 1000 hours), and temperature-cycle tests (from -40 °C to 85 °C, 500 cycles) compliant with Telcordia GR-1221-CORE standards*, ensuring no degradation such as coating delamination even under harsh conditions, and enabling long-term stable use.

* Telcordia standards: Reliability requirements for passive optical components used in optical 　　

　communication systems

Optical-communication components must maintain highly reliable communication infrastructure over long periods and under diverse operating environments.

Shimadzu diffraction gratings for optical communications pass high-temperature tests (85 °C, 2000 hours), high-temperature/high-humidity tests (85 °C, 85 % RH, 2000 hours), low-temperature tests (-40 °C, 1000 hours), and temperature-cycle tests (from -40 °C to 85 °C, 500 cycles) compliant with Telcordia GR-1221-CORE standards*, ensuring no degradation such as coating delamination even under harsh conditions, and enabling long-term stable use.

* Telcordia standards: Reliability requirements for passive optical components used in optical 　　

　communication systems



 Technologies, Achievements, History of Shimadzu Diffraction GratingsLP用_下線.png

Fabrication Process

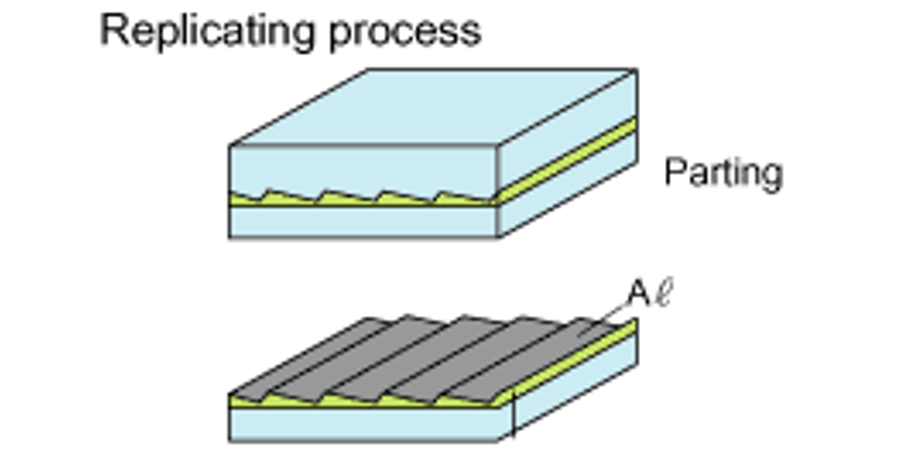

Shimadzu gratings are made by replicating a “Master”. We were the first to develop the technology for manufacturing blazed holographic gratings (BHG), which, compared to conventional mechanically ruled gratings, ensure less stray light without any reduction in diffraction efficiency. This unique grating manufacturing technology was previously patented in Japan as Japanese Patent No. 1046763 and was awarded the Okochi Memorial Prize.

Achievements

The Planetary Spectroscopic Observation Satellite "Hisaki" (SPRINT‒A), equipped with a diffraction grating manufactured by Shimadzu, is a space telescope dedicated to planetary observation that remotely observes Venus, Mars, Jupiter, etc. from the orbit of the satellite orbiting the Earth. By observing extreme ultraviolet light in outer space, which cannot be detected on Earth, we analyze the atmosphere of planets and contribute to the elucidation of their mysteries.

History

Shimadzu has been doing business based on our corporate philosophy, “Contributing to Society through Science and Technology,” since being founded almost 150 years ago in Japan. Our aim is to use science and technology to innovate and solve societal challenges together with customers from around the world. Our diffraction gratings have been designed and manufactured since 1980, providing over 45 years of experience.
